Abstract

Simultaneous understanding and 3D reconstruction plays an important role in developing end-to-end embodied intelligent systems. To achieve this, recent approaches resort to 2D-to-3D feature alignment paradigm, which leads to limited 3D understanding capability and potential semantic information loss. In light of this, we propose SIU3R, the first alignment-free framework for generalizable simultaneous understanding and 3D reconstruction from unposed images. Specifically, SIU3R bridges reconstruction and understanding tasks via pixel-aligned 3D representation, and unifies multiple understanding tasks into a set of unified learnable queries, enabling native 3D understanding without the need of alignment with 2D models. To encourage collaboration between the two tasks with shared representation, we further conduct in-depth analyses of their mutual benefits, and propose two lightweight modules to facilitate their interaction. Extensive experiments demonstrate that our method achieves state-of-the-art performance not only on the individual tasks of 3D reconstruction and understanding, but also on the task of simultaneous understanding and 3D reconstruction, highlighting the advantages of our alignment-free framework and the effectiveness of the mutual benefit designs.

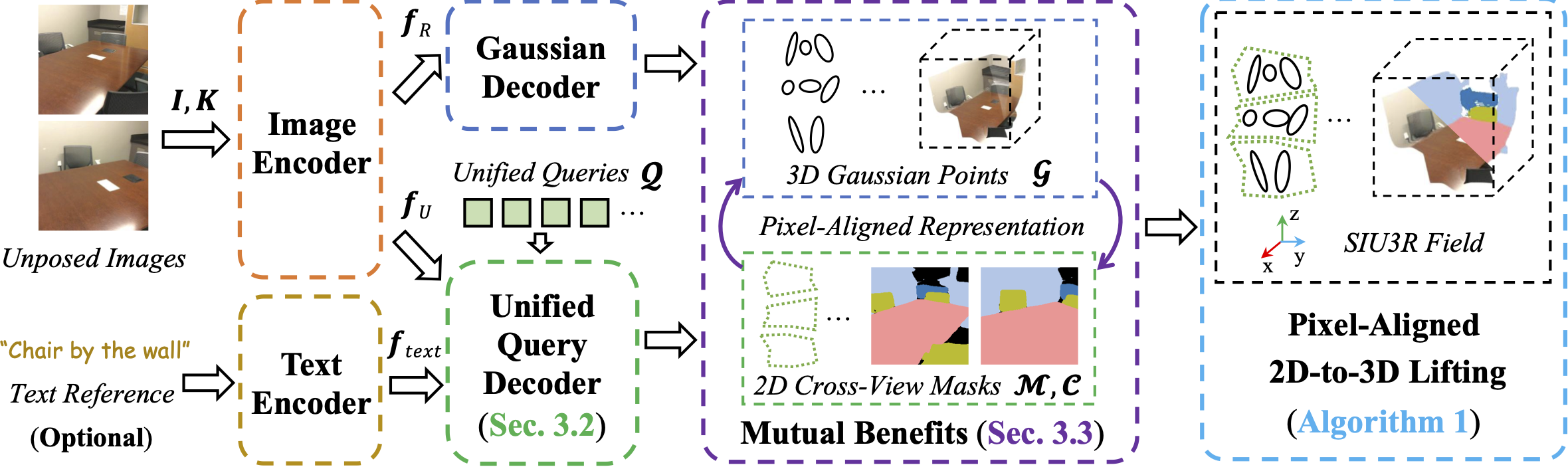

Method Overview

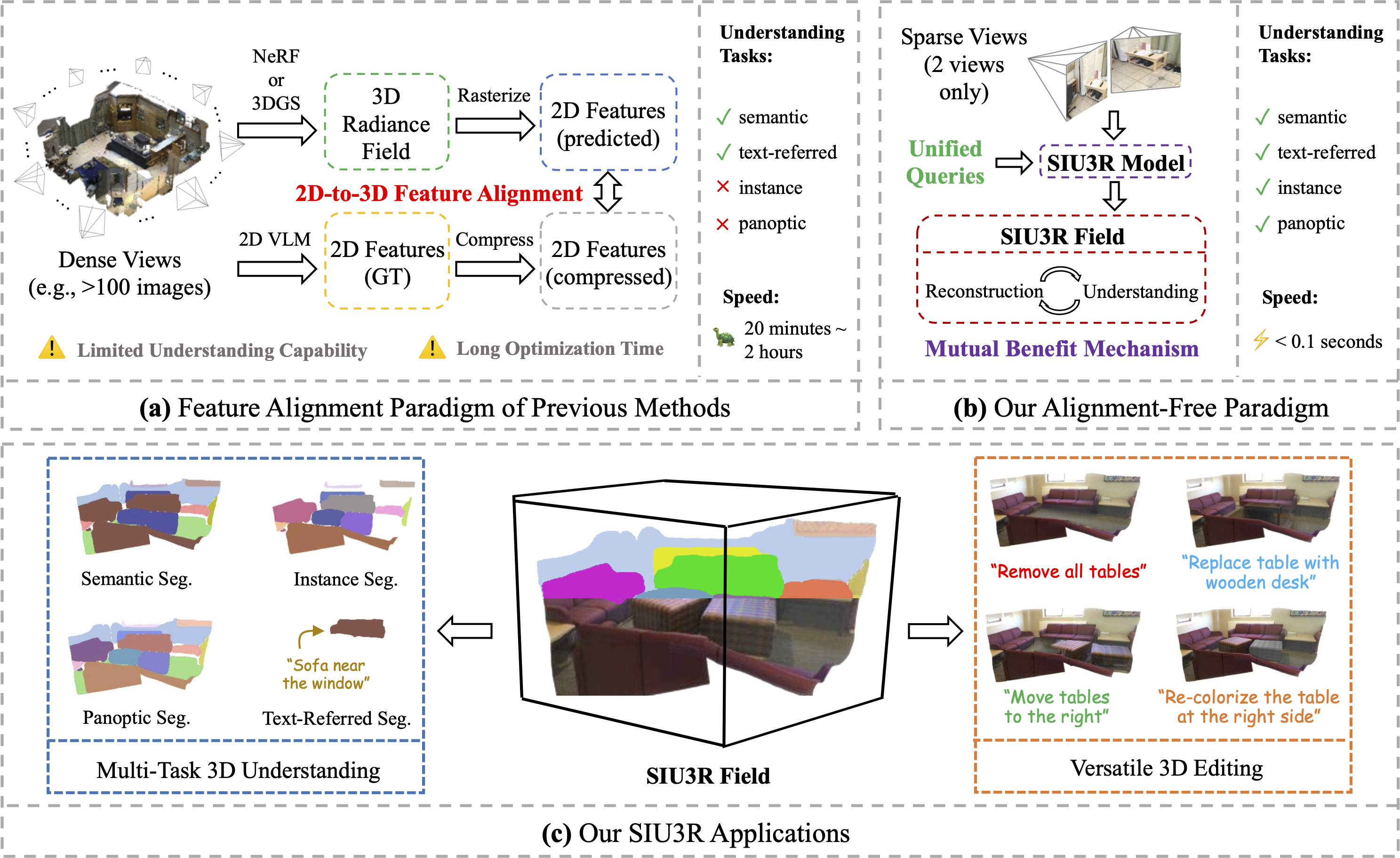

SIU3R is a feed-forward method that can achieve simultaneous 3D scene understanding and reconstruction given unposed images. In particular, SIU3R does not require feature alignment with 2D VLMs (e.g., CLIP, LSeg) to enable understanding, which unleashes its potential as a unified model to achieve multiple 3D understanding tasks (i.e., semantic, instance, panoptic and text-referred segmentation). Moreover, tailored designs for mutual benefits can further boost SIU3R's performance by encouraging bi-directional promotion between reconstruction and understanding.

Visualization Results



rgb

sem

ins

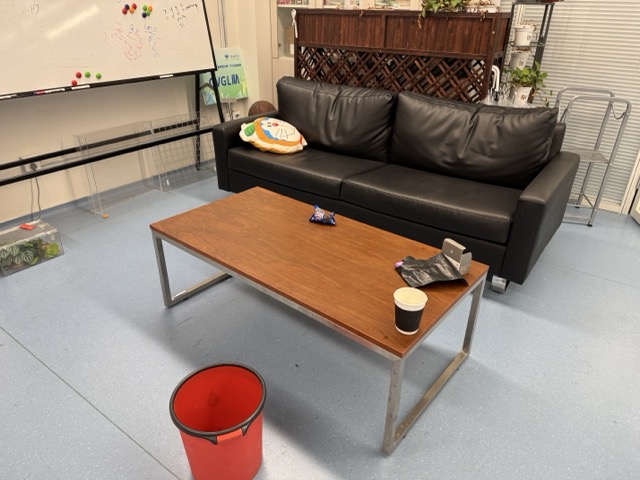

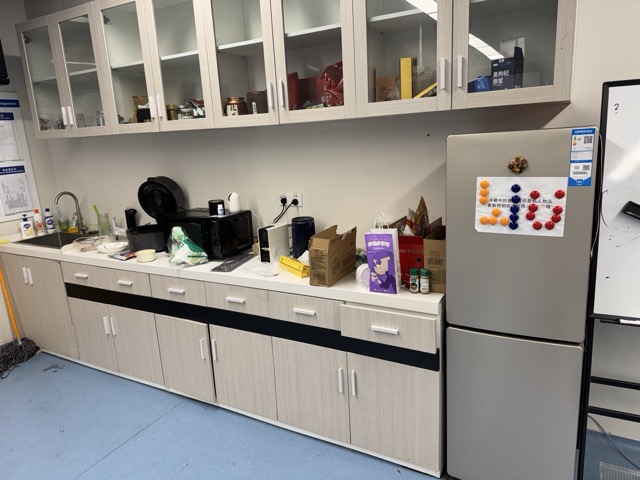

Zero-shot to Real-world Captured Data Visualization Results



rgb

sem

ins

Extend to 4 Input Views Visualization Results





rgb

sem

ins

Extend to 8 Input Views Visualization Results









rgb

sem

ins

Zero-shot to Scannet++ and Replica Visualization Results



rgb

sem

ins

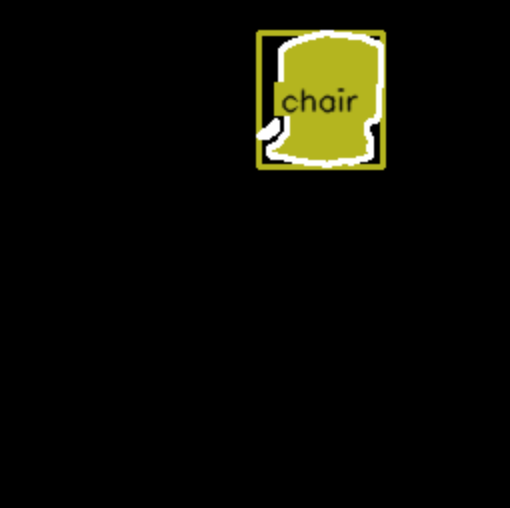

Text-referred Segmentation Visualization Results

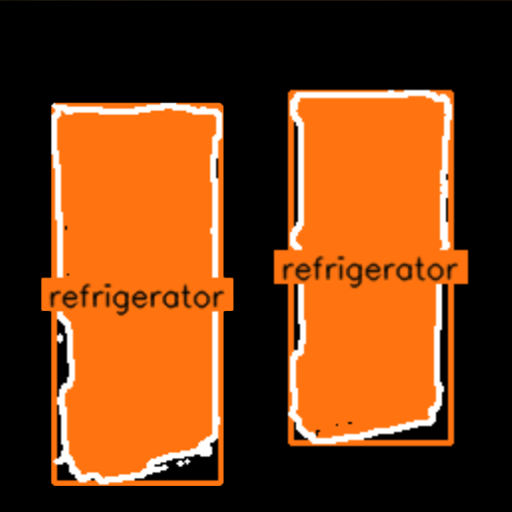

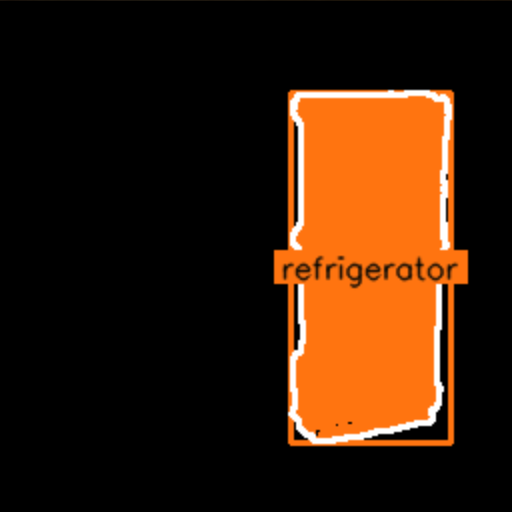

refrigerator right of another

refrigerators

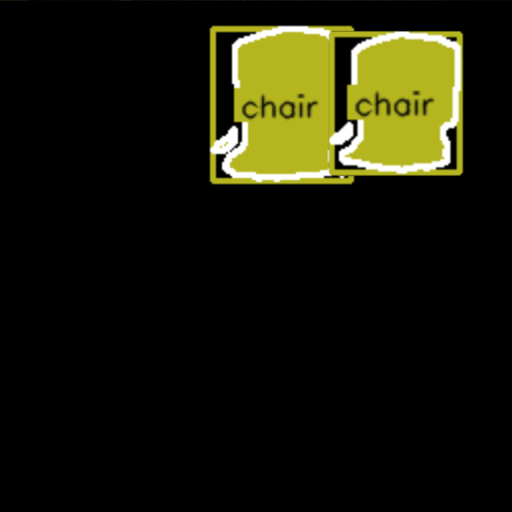

the chair on the right

chairs

Depth Visualization for Objects with Complex or Curved Geometries

@misc{xu2025siu3r,
    title={SIU3R: Simultaneous Scene Understanding and 3D Reconstruction Beyond Feature Alignment},
    author={Qi Xu and Dongxu Wei and Lingzhe Zhao and Wenpu Li and Zhangchi Huang and Shunping Ji and Peidong Liu},
    year={2025},
    eprint={2507.02705},
    archivePrefix={arXiv},
    primaryClass={cs.CV}
}
